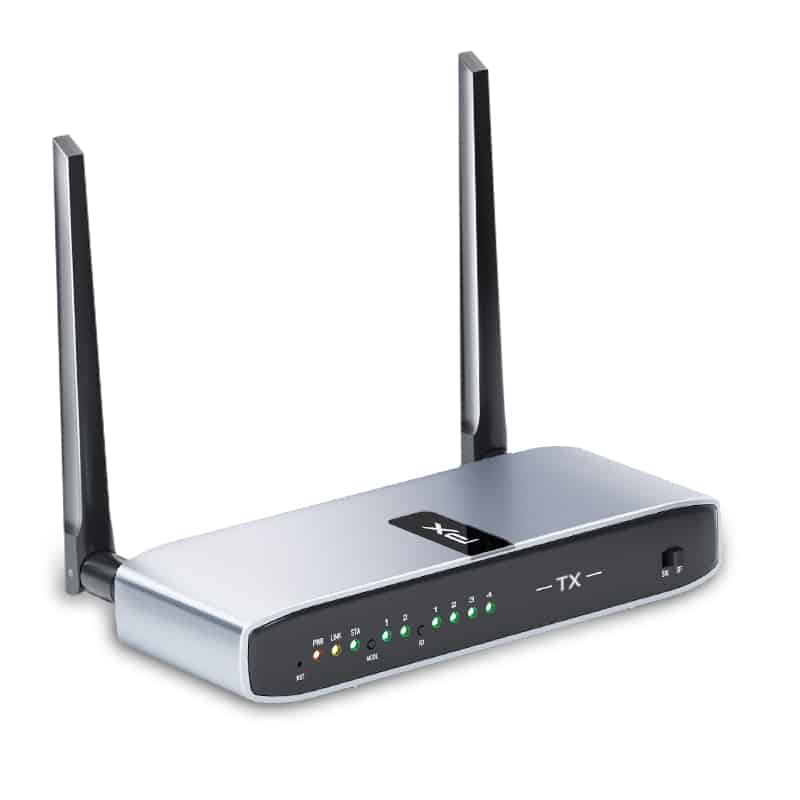

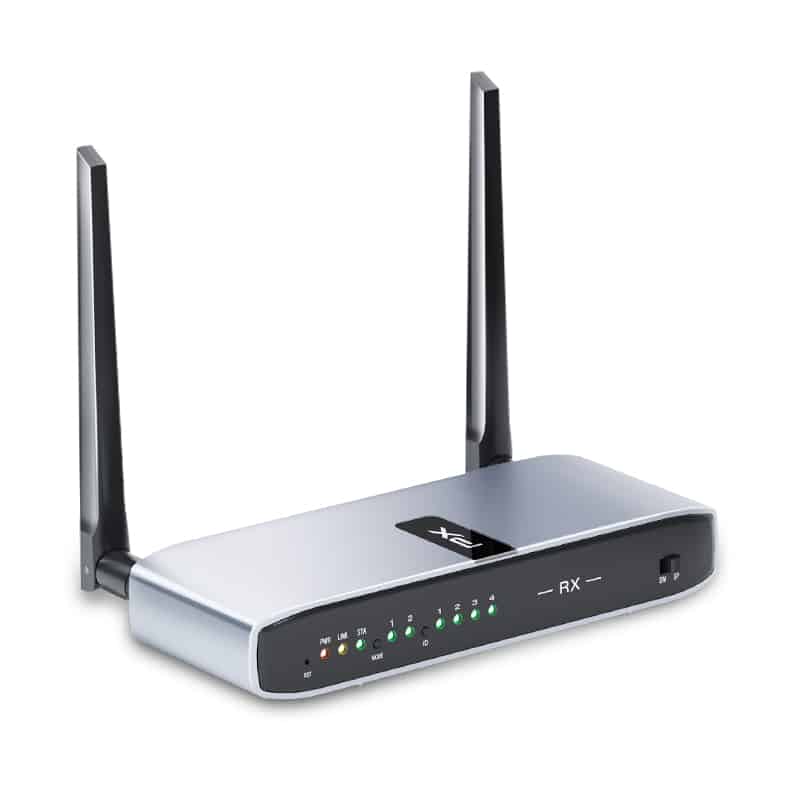

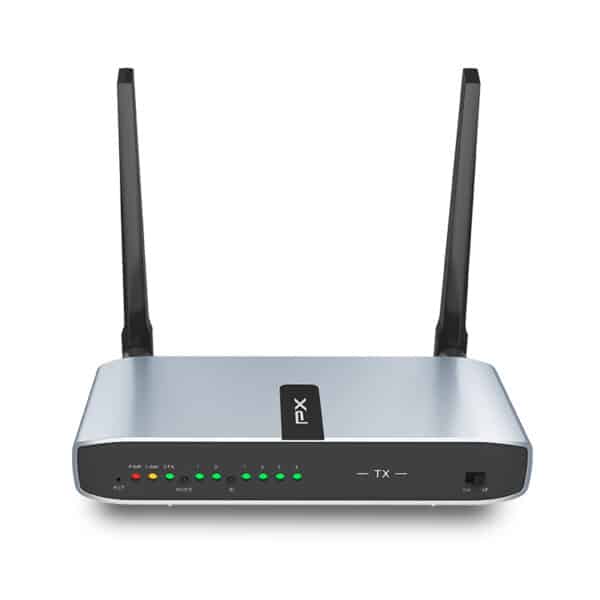

WTR-PRO3 | Wireless HDMI Transmitter and Receiver|1080p Long range 500ft
• Super long range: wirelessly transmit HDMI signal up to 492 ft. (150 meters) L.O.S.

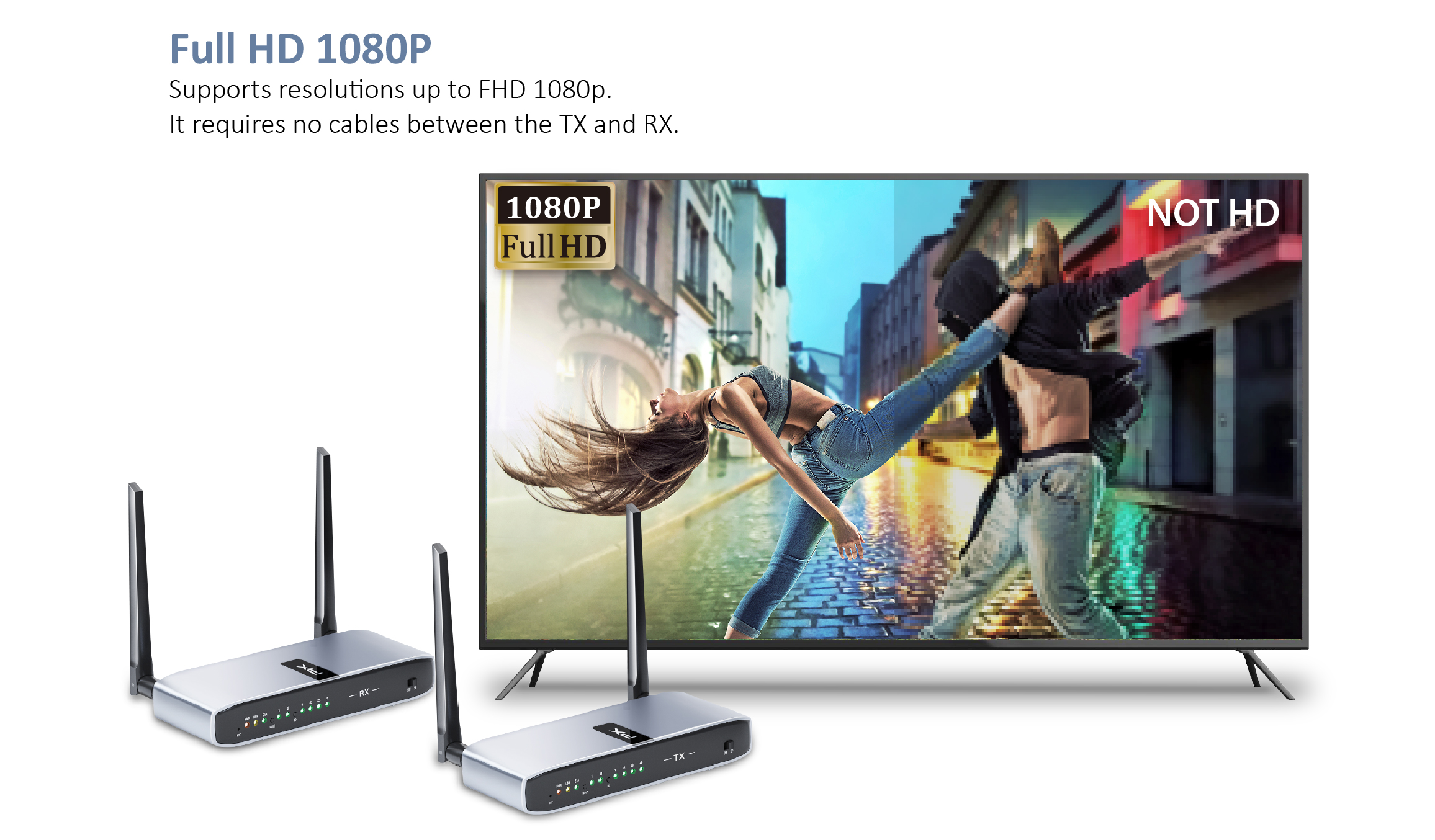

• Supports up to 1080p resolution.
• TX mode supports HDMI loop-through output.
• Supports external audio port (3.5mm earphone jack).
• Supports full band IR, USB return control . (It is able to use keyboard and mouse to control devices at the receiver side. Wireless mouse and keyboard supported.)
• Supports multiple configuration point to point, 1 TX to multiple RX (splitter mode), multiple TX to 1 RX (switch mode) and 2 TX to 2 RX (matrix mode).
• Strong anti-interference by wifi 5GHz frequency.
• Low latency: 300ms max.
• No more expensive wiring, cabling, or wall-drilling.
• Perfect for meeting room, church, lecture hall, trade show, shopping center, library, show room, digital signage, multimedia education areas, home theater, industrial sites and auditoriums.
Overview
Description |
Wireless HDMI Transmitter and Receiver|1080p Long range- 500 ft. |

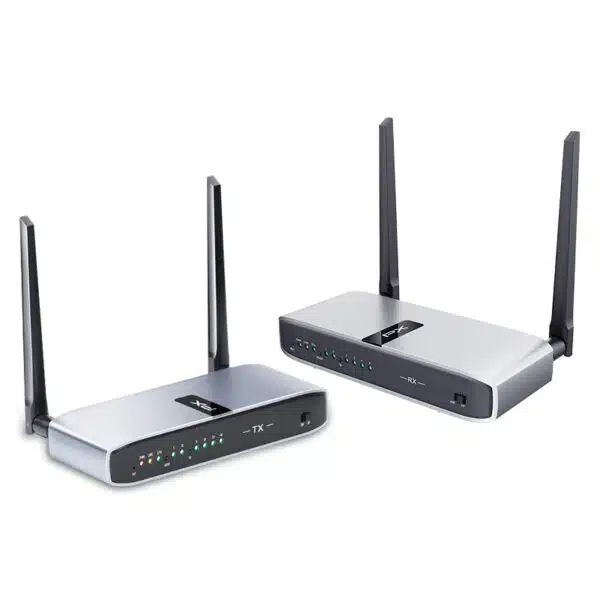

The wireless HDMI KVM extender (HDMI transmitter and receiver) supports Full HD 1080p HDMI signals wirelessly up to 500 ft. (150 m.) with IR control, keyboard and mouse control, and local HDMI loop-out.
It allows the users to control the HDMI source device remotely, such as PCs and playback at the distant display with low latency. With the wireless HDMI transmitter and receiver, you can conveniently control your HDMI source device from a remote location.
It requires no cables between the transmitter (TX) and receiver (RX), making the installation easy and clean. Ideal for conferences, training, education, home entertainment and other applications. , this wireless HDMI transmitter and receiver setup eliminates the need for cumbersome cables.

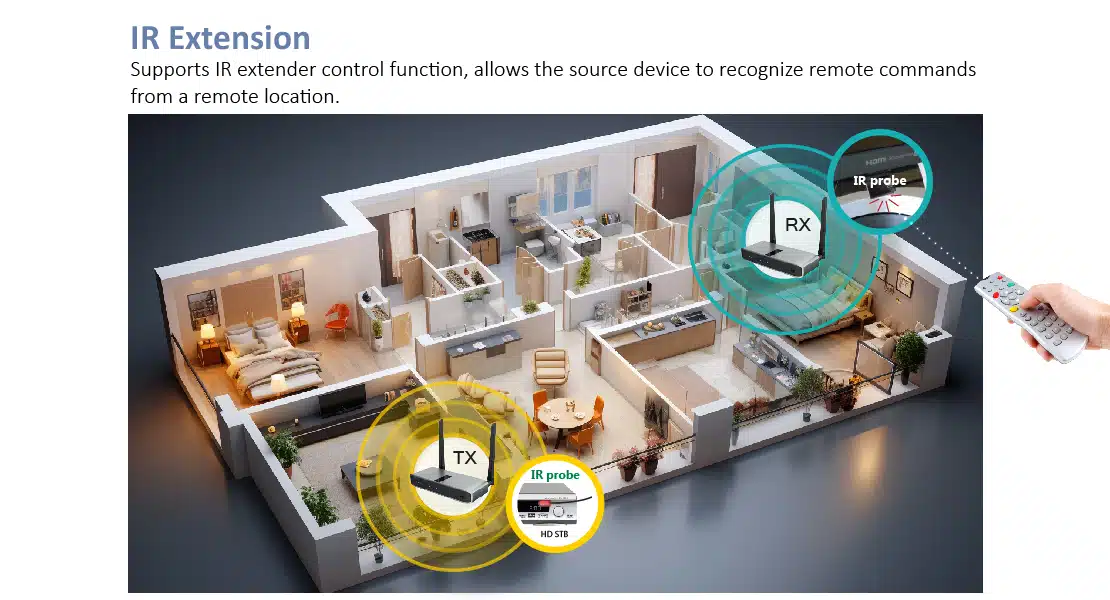

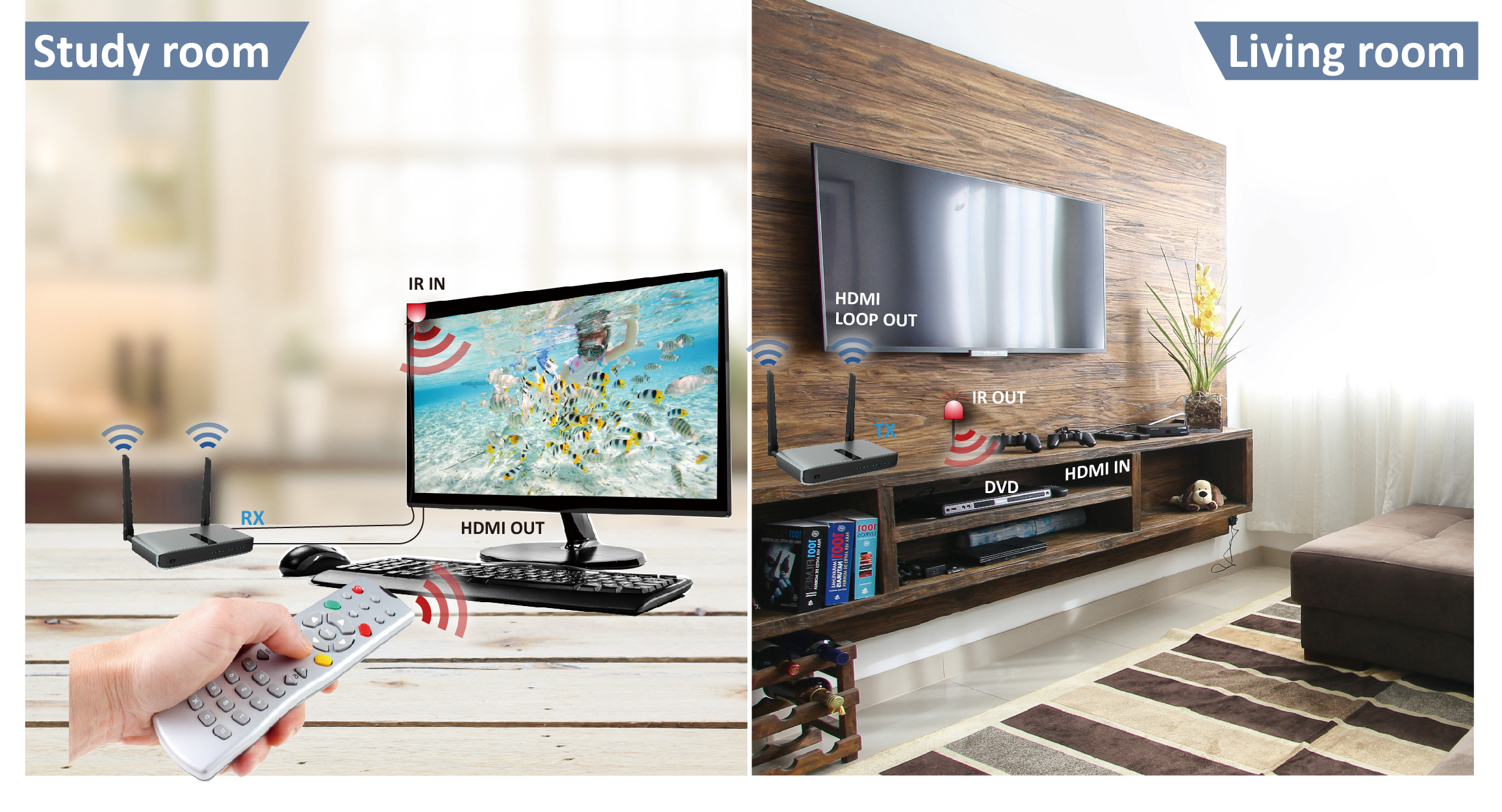

Supports IR Extension
This wireless HDMI transmitter and receiver, WTR-PRO3 supports IR extender control function, allows the source device to recognize remote commands from a remote location.

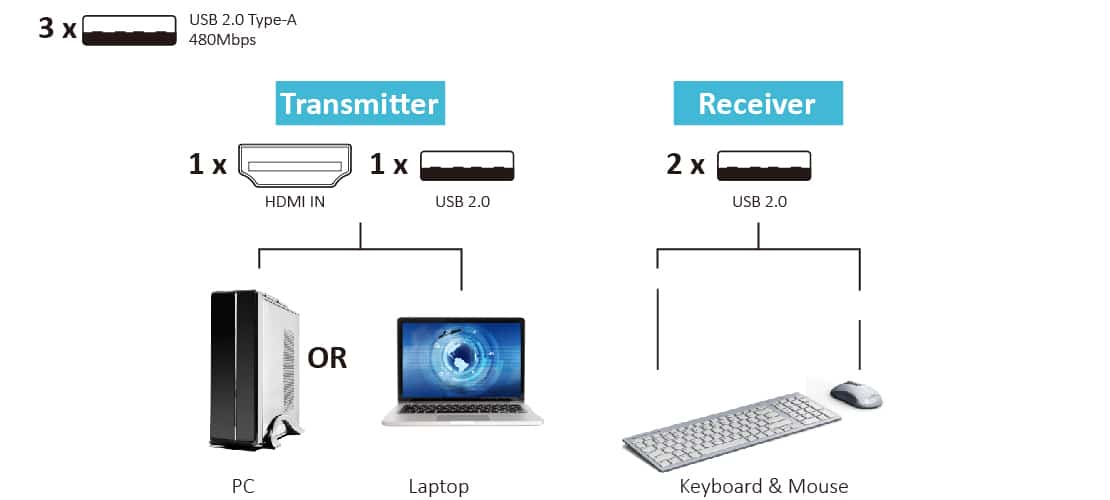

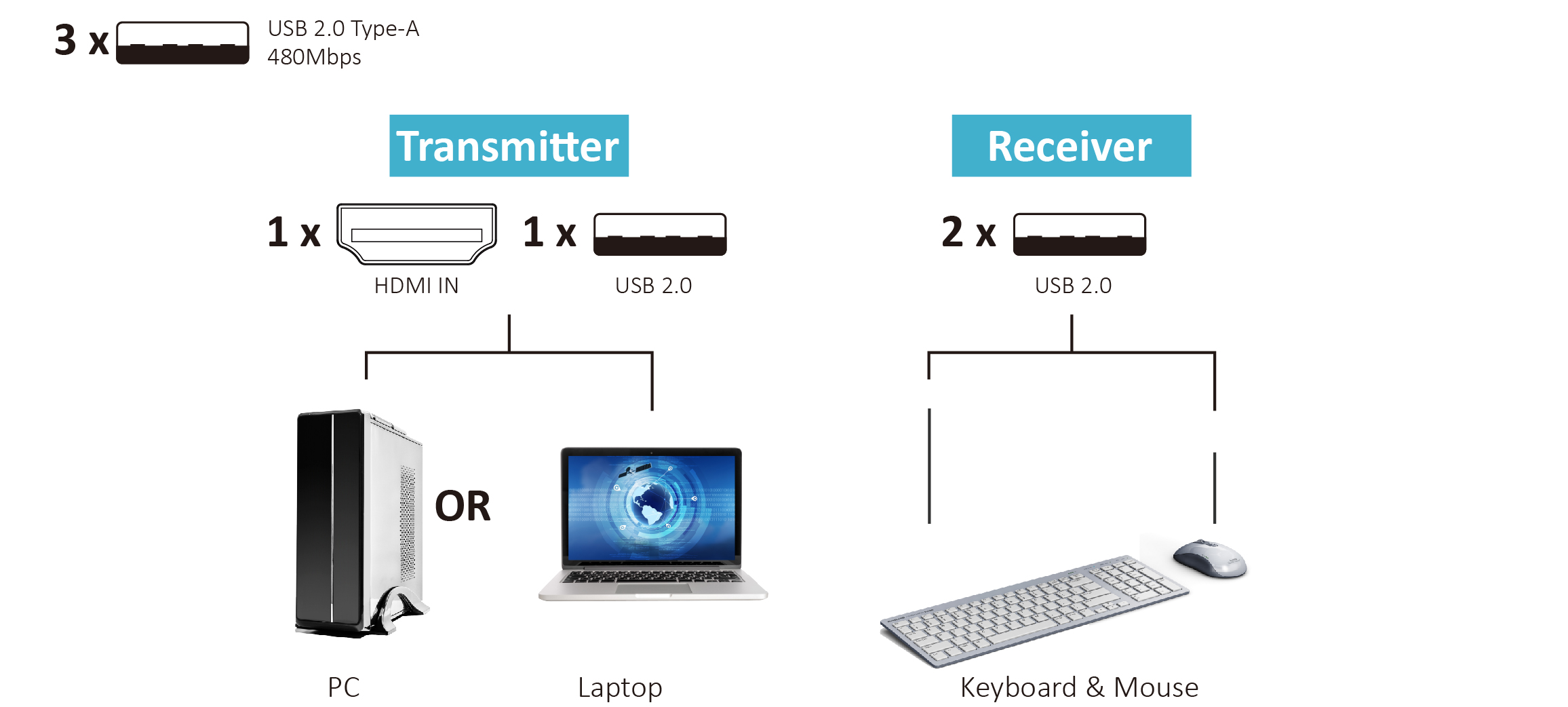

Supports KVM extension
This wireless HDMI transmitter and receiver, WTR-PRO3 supports KVM extension with USB ports to control PC on receiver side.
Supports External audio port
This wireless HDMI transmitter and receiver, WTR-PRO3 supports external audio port. (3.5mm earphone jack) via wireless transmission.
Application Scenario

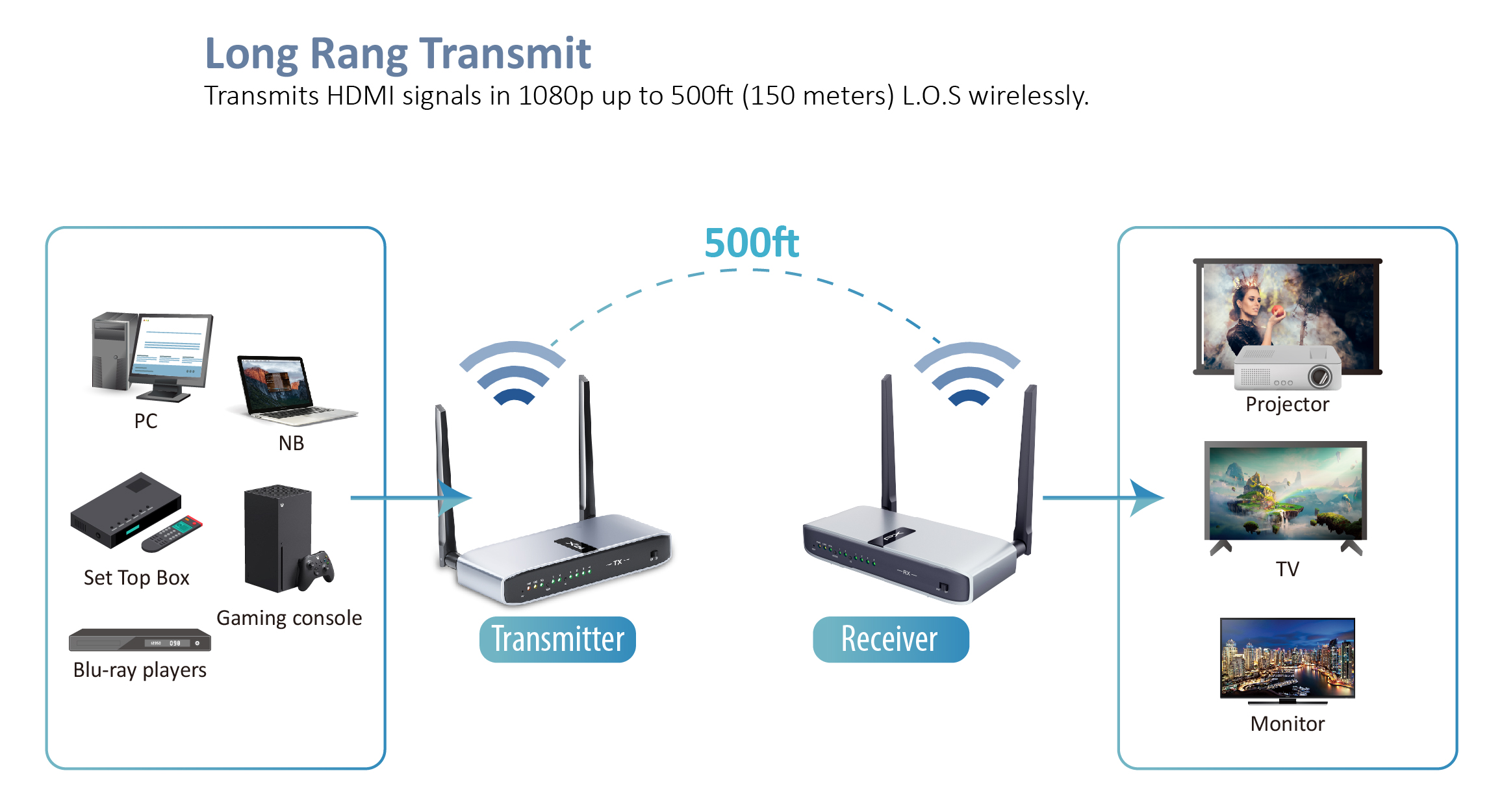

Super Long range transmit
Experience an exceptional wireless range of up to 500 ft. (150 meters) with this high-performance wireless HDMI transmitter and receiver.

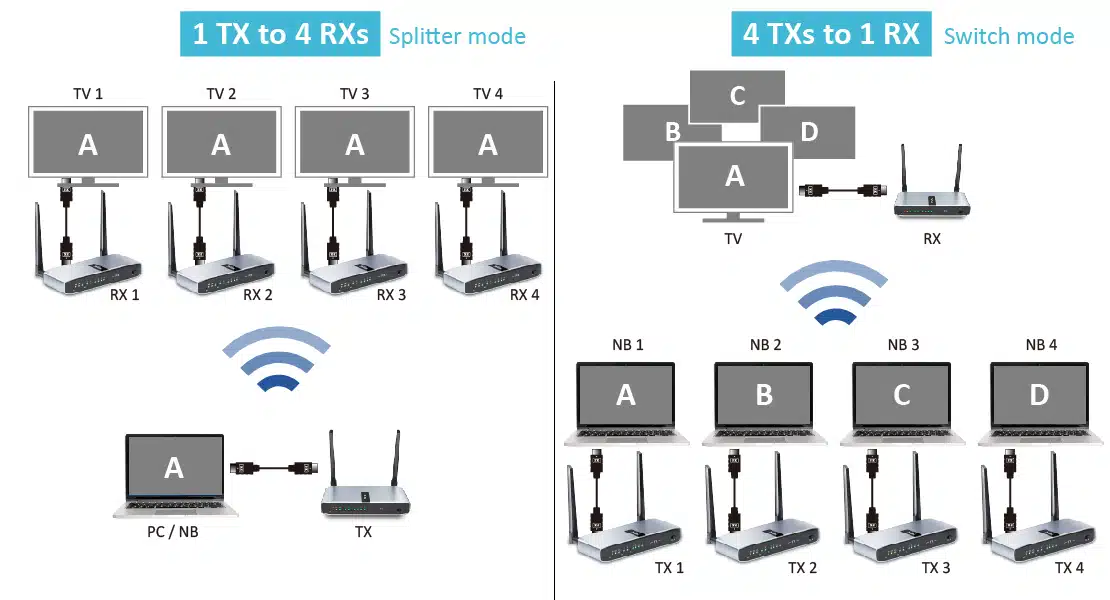

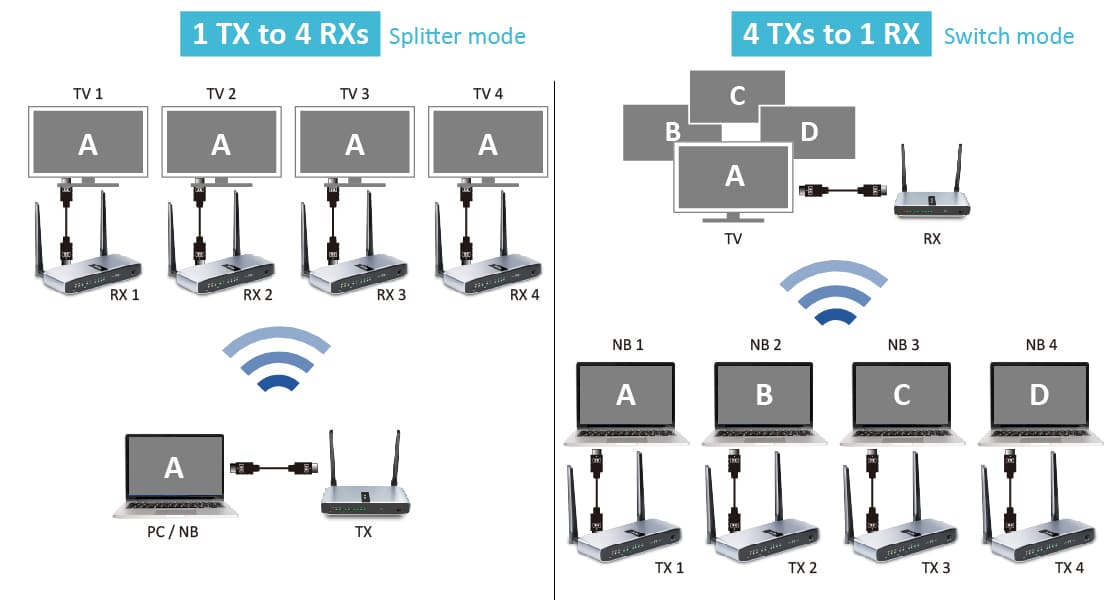

Supports multiple configuration point to point, 1 TX to multiple RX (splitter mode), multiple TX to 1 RX (switch mode) and 2 TX to 2 RX (matrix mode).
With flexible configuration options, this wireless HDMI transmitter and receiver setup allows for point-to-point, splitter, switch, and matrix modes to suit various setups.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Features
• Super long range: wirelessly transmit HDMI signal up to 500 ft. (150 meters) L.O.S. Experience an exceptional wireless range of up to 500 ft. (150 meters) with this high-performance wireless HDMI transmitter and receiver.
• Supports up to 1080p resolution. Enjoy stunning Full HD 1080p resolution with this wireless HDMI transmitter and receiver setup.
• TX mode supports HDMI loop-through output. The TX mode of this wireless HDMI transmitter and receiver supports HDMI loop-through output, allowing for seamless connectivity.
• Supports external audio port (3.5mm earphone jack). Connect your external audio devices easily with the 3.5mm earphone jack supported by this wireless HDMI transmitter and receiver.
• Supports full band IR, USB return control . Take advantage of full band IR and USB return control with this wireless HDMI transmitter and receiver, enabling convenient control over devices at the receiver side using a wireless mouse and keyboard.
• Supports multiple configuration point to point, 1 TX to multiple RX (splitter mode), multiple TX to 1 RX (switch mode) and 2 TX to 2 RX (matrix mode). With flexible configuration options, this wireless HDMI transmitter and receiver setup allows for point-to-point, splitter, switch, and matrix modes to suit various setups.
• Strong anti-interference by wifi 5GHz frequency. Experience strong anti-interference capabilities with the WiFi 5GHz frequency of this wireless HDMI transmitter and receiver.
• Low latency: 300ms max. Enjoy minimal latency of up to 300ms with this wireless HDMI transmitter and receiver, ensuring smooth and responsive performance.
• No more expensive wiring, cabling, or wall-drilling. Say goodbye to expensive wiring, cabling, and wall-drilling with this wireless HDMI transmitter and receiver, providing a hassle-free installation experience.
• Perfect for meeting room, church, lecture hall, trade show, shopping center, library, show room, digital signage, multimedia education areas, home theater, industrial sites and auditoriums. This wireless HDMI transmitter and receiver solution is perfect for a wide range of applications, including meeting rooms, churches, trade shows, and more.
Specification

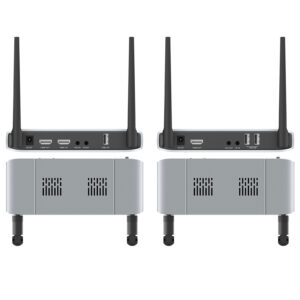

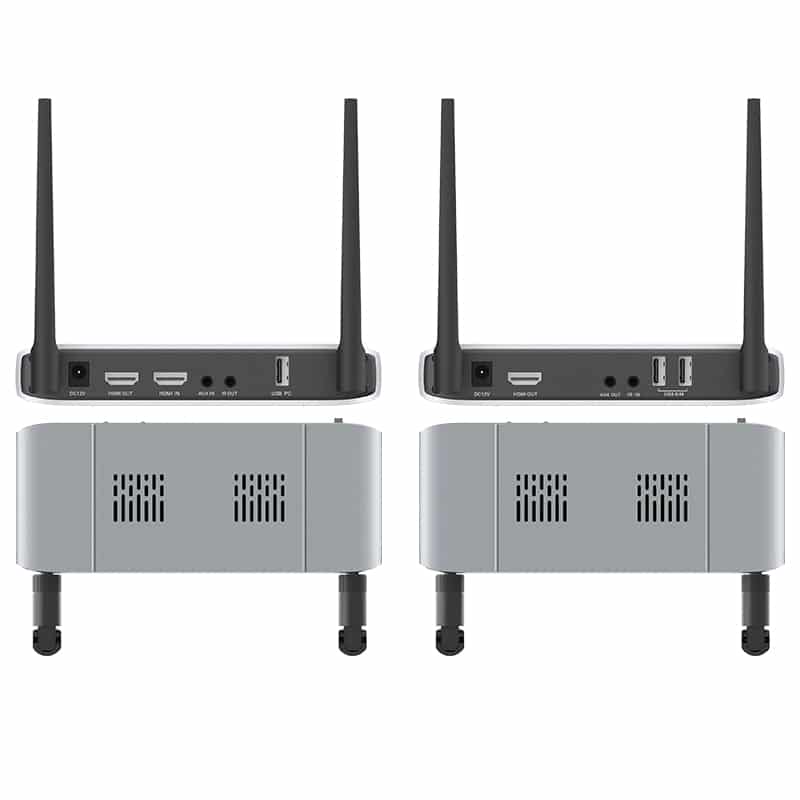

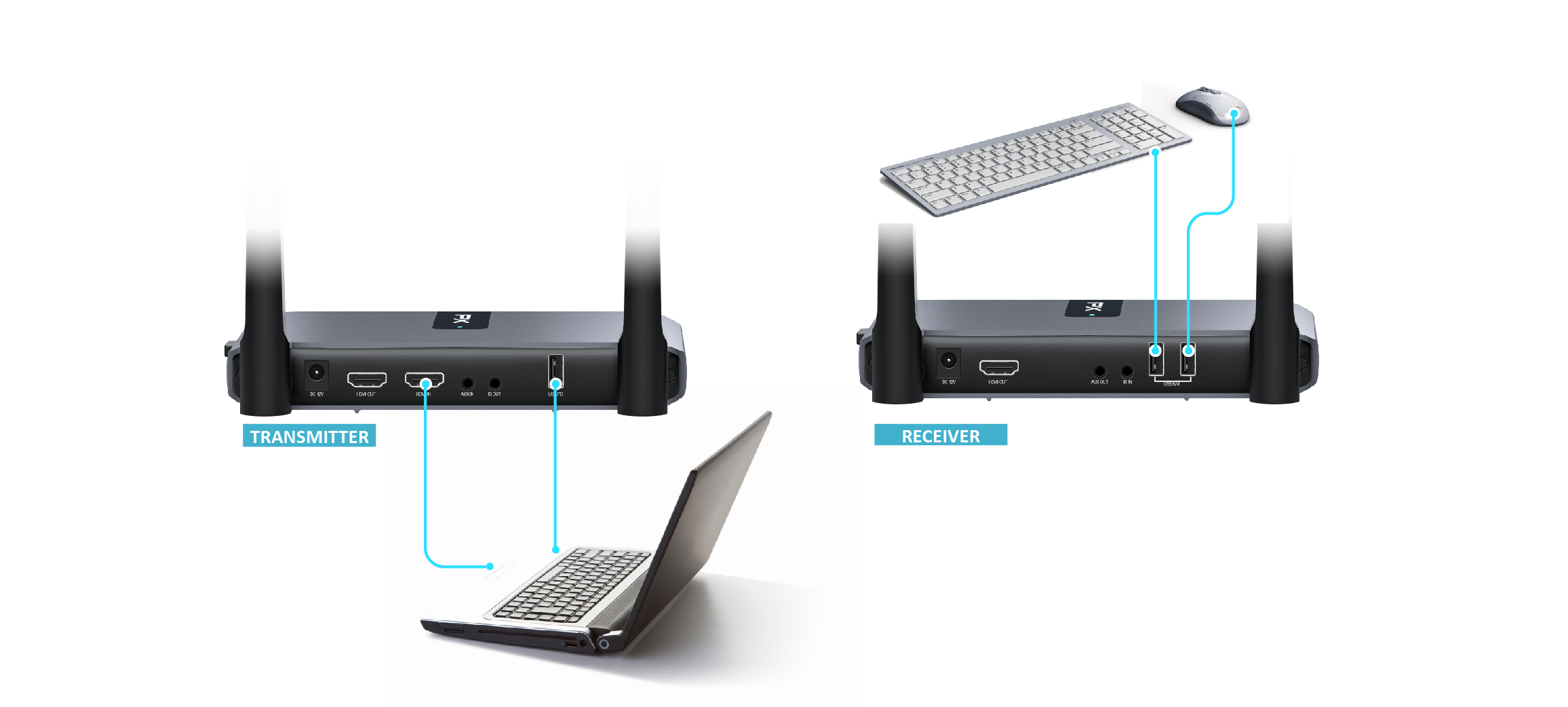

• TX input: HDMI female x 1, 3.5mm audio / Output: HDMI female x 1, IRx1, USBx1

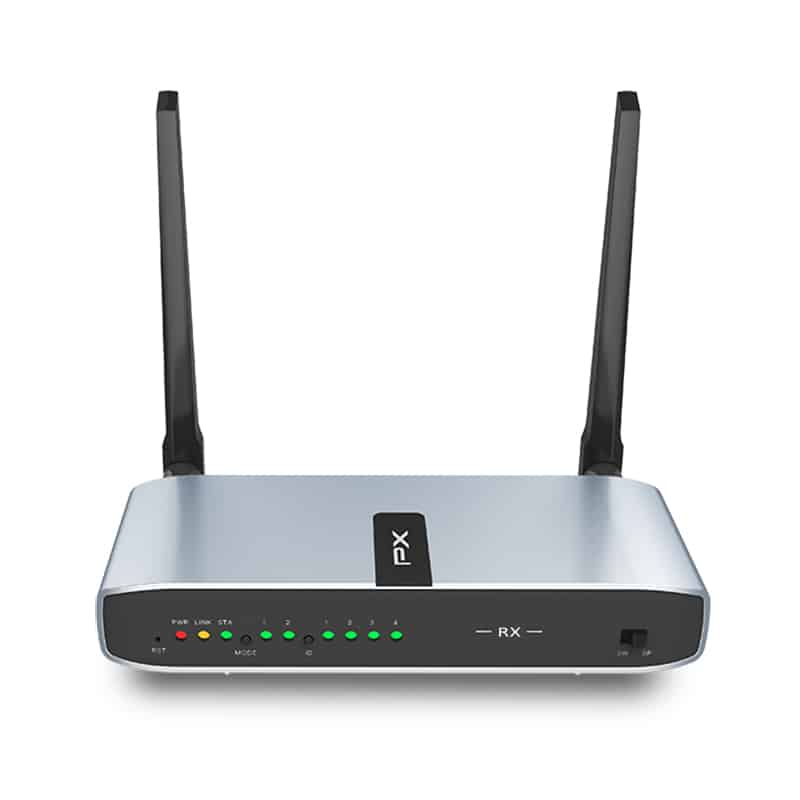

• RX output: HDMI female x 1, 3.5mm audio / IR x1, USB x2
• HDMI 1.3a / HDCP 1.3
• Pixel clock rate up to 165MHz
• Video data rate: 4.80Gbps
• Video resolutions supported: 1080p
• Wireless use 5GHz wireless frequency
Color: Gray

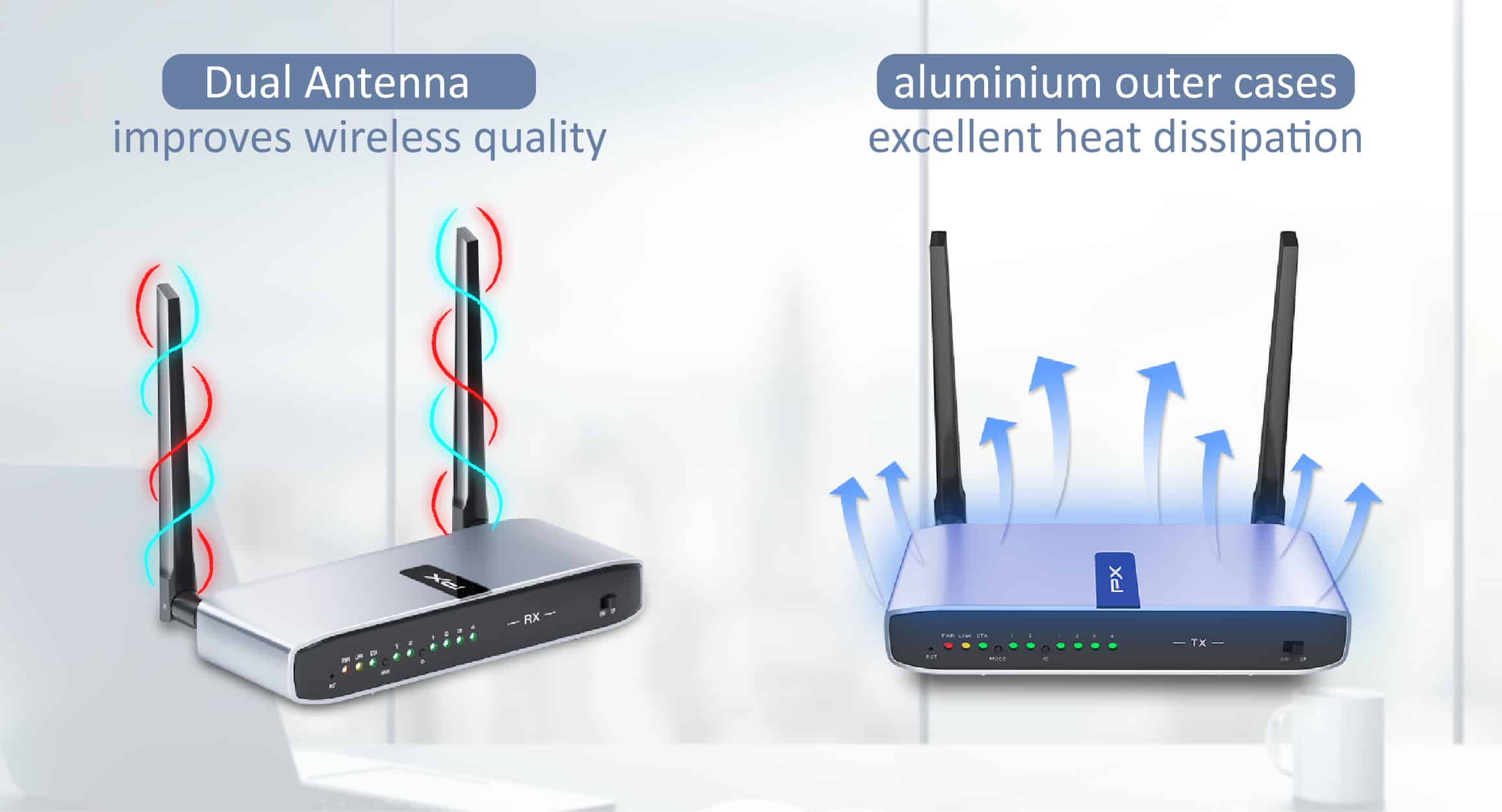

Material: Aluminum
Dimensions: TX:67.7×165.5×28.8 (mm) / RX:67.7×165.5×28.8 (mm)

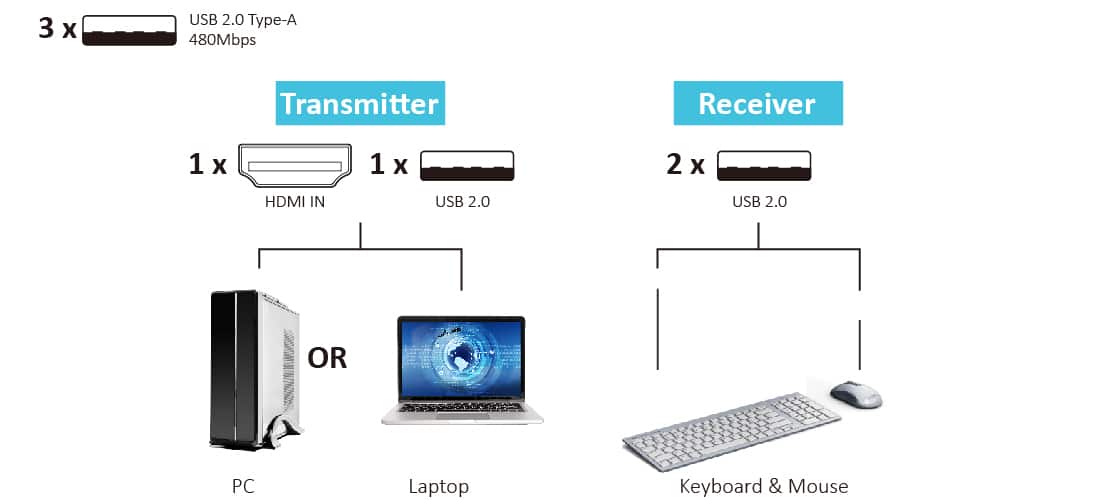

Diagram
